ASEM-System

Advanced Shrinkage & Expansion Measuring System

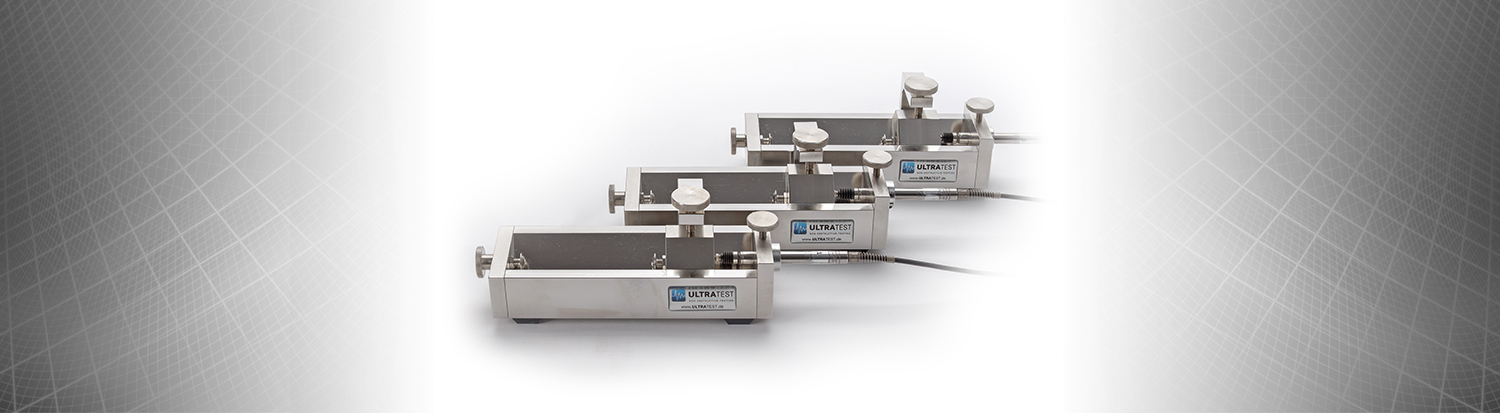

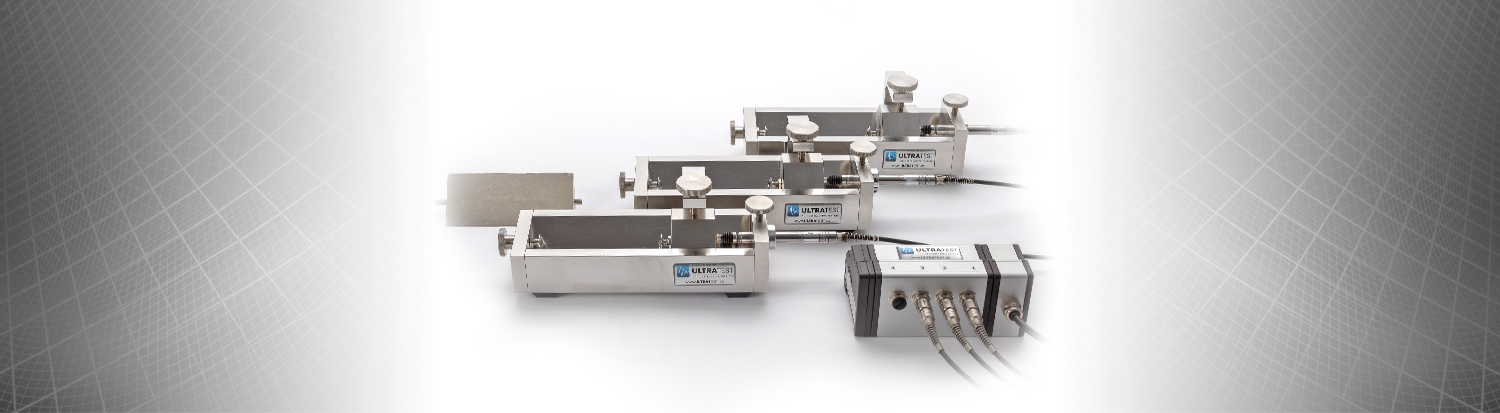

Our compact ASEM system was designed for precise measurements of shrinkage/expansion, simultaneous or independent of ultrasonic measurements.

ASEM System

ASEM System

ASEM System

Main features

+ High resolution shrinkage/expansion measurements

Our high resolution linear probes resolve changes in length with a resolution of 0.1 µm. This corresponds to 0.001 ‰ or 1 ppm in our shrinkage grooves with a measuring length of 100mm.

+ Compact Dimensions

The ASEM system's shrinkage grooves are very compact, so that up to 4 shrinkage grooves can be placed on one level of a climate chamber.
Total Length: 170 mm; Width: 60 mm; Height: 80 mm; Measurement Length: 100 mm.

+ Expandable to up to 24 Channels

The ASEM system can be extended to up to 24 shrinkage measurement channels, which can all run in parallel.

+ Simultaneous or Independent of Ultrasonic Measurements

Shrinkage / Expansion measurements can be performed simultaneous or independent of Ultrasonic Measurements. This allows you to perform shrinkage measurements over long periods of time without blocking the measuring channels of your IP-8 System.

+ Also suitable for existing shrinkage grooves

The ASEM system is compatible with many existing shrinkage grooves. This means you can continue to use your existing equipment and still analyze your data in our intuitive UltraTestLab software.

×


Testservice

Should you be interested in a presentation with test measurements on your products, we would be pleased to arrange an appointment. You can send us up to 3 product samples for a test measurement. The results will be e-mailed to you as a PDF file within a few days.


Contact


Online Presentation

If you would like to find out more about the ASEM-System and its benefits, you should take part in an online presentation.

Within 30 minutes, one of our experts will demonstrate the ASEM-System and answer any questions you may have.

Simply send us your request and one of our experts will arrange an appointment with you.


Contact

References

Construction Chemicals, Additives, Waterproofing

Cement, Concrete, Construction Materials

Universities, Research, Teaching

Mortar, Plaster, Thermal Composite System

Facades, Floor, Roofing Systems, Drywall

Refractories, Castables

3D Printing

Tires & Rubber Products
